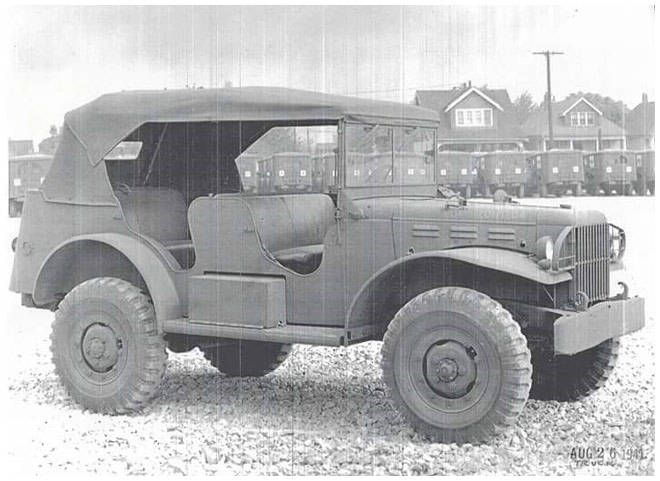

Details of metal framed glass window of the early production Command Cars |
|

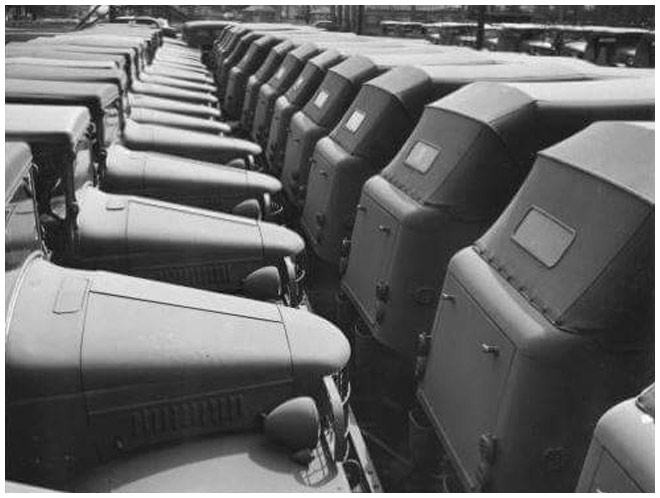

| The 1/2 ton and early 3/4 ton CC have had metal framed rear windows, the later ones have plastic sewn in windows. |
| The metal frame is about 24 inch wide and 7 inch high. (ca. 61 cm x 18 cm) |
|

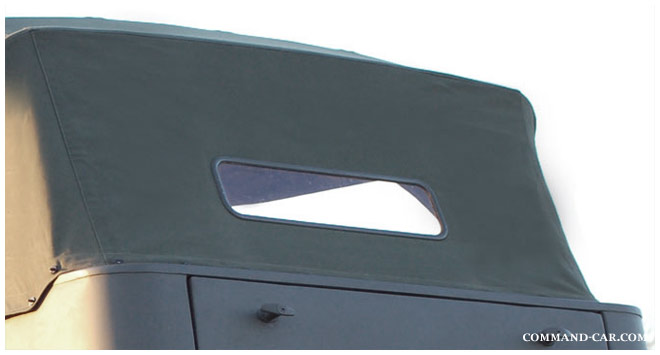

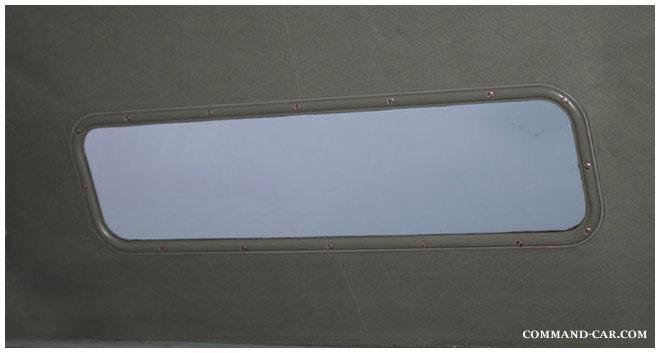

| The frame shown here is an original one, taken from a vintage CC canvas and relocated in a new canvas. |
| Unfortunately the original Canvas was too dry from sun etc to use it. |
|

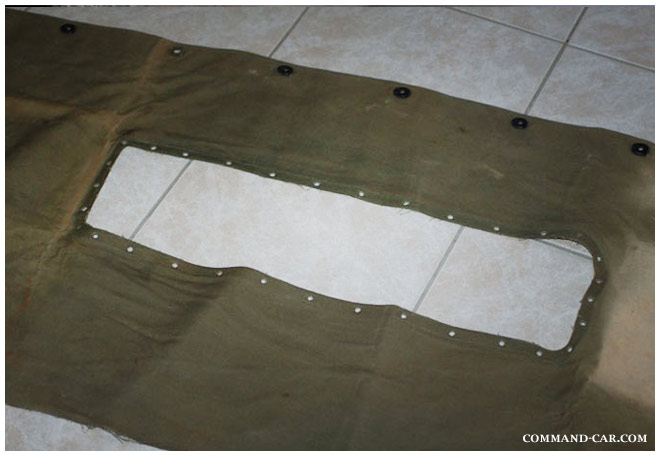

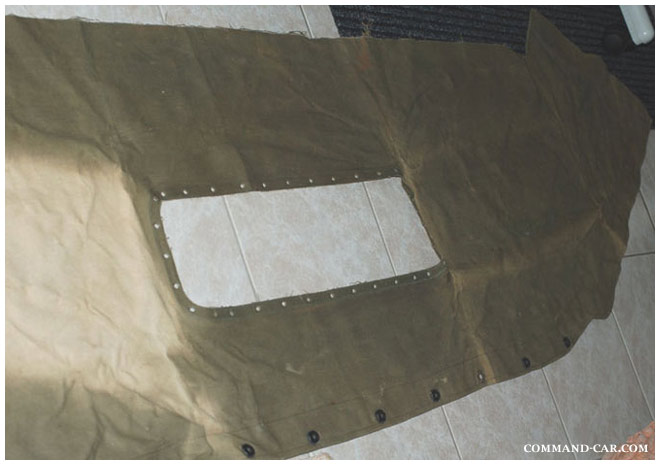

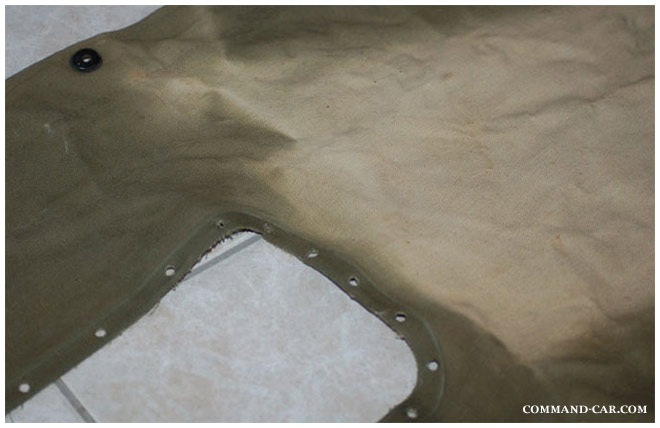

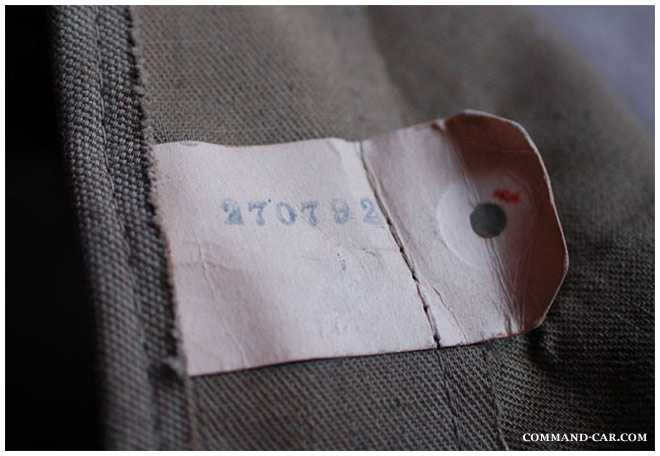

| These pictures are taken from the vintage piece of Command Car canvas after taken the window out. |
| The different shades of OD came due to the agressive sunlight over the decades. |

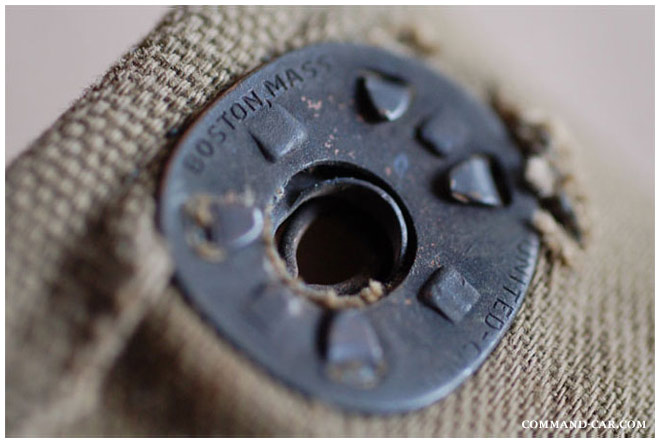

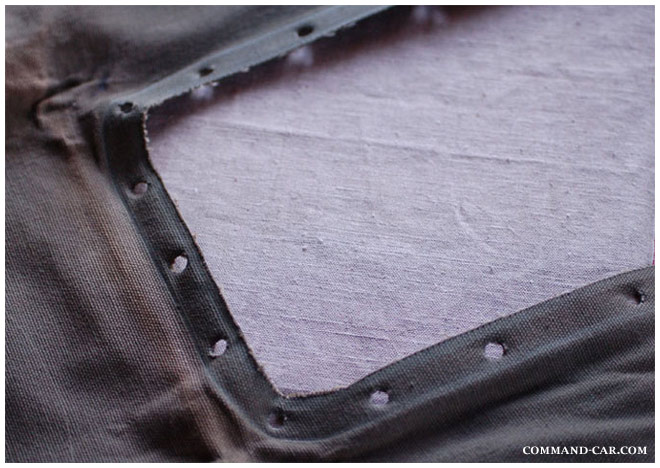

| Every second hole is used for a screw going completely through the canvas, the others just fix it inside the frame. |

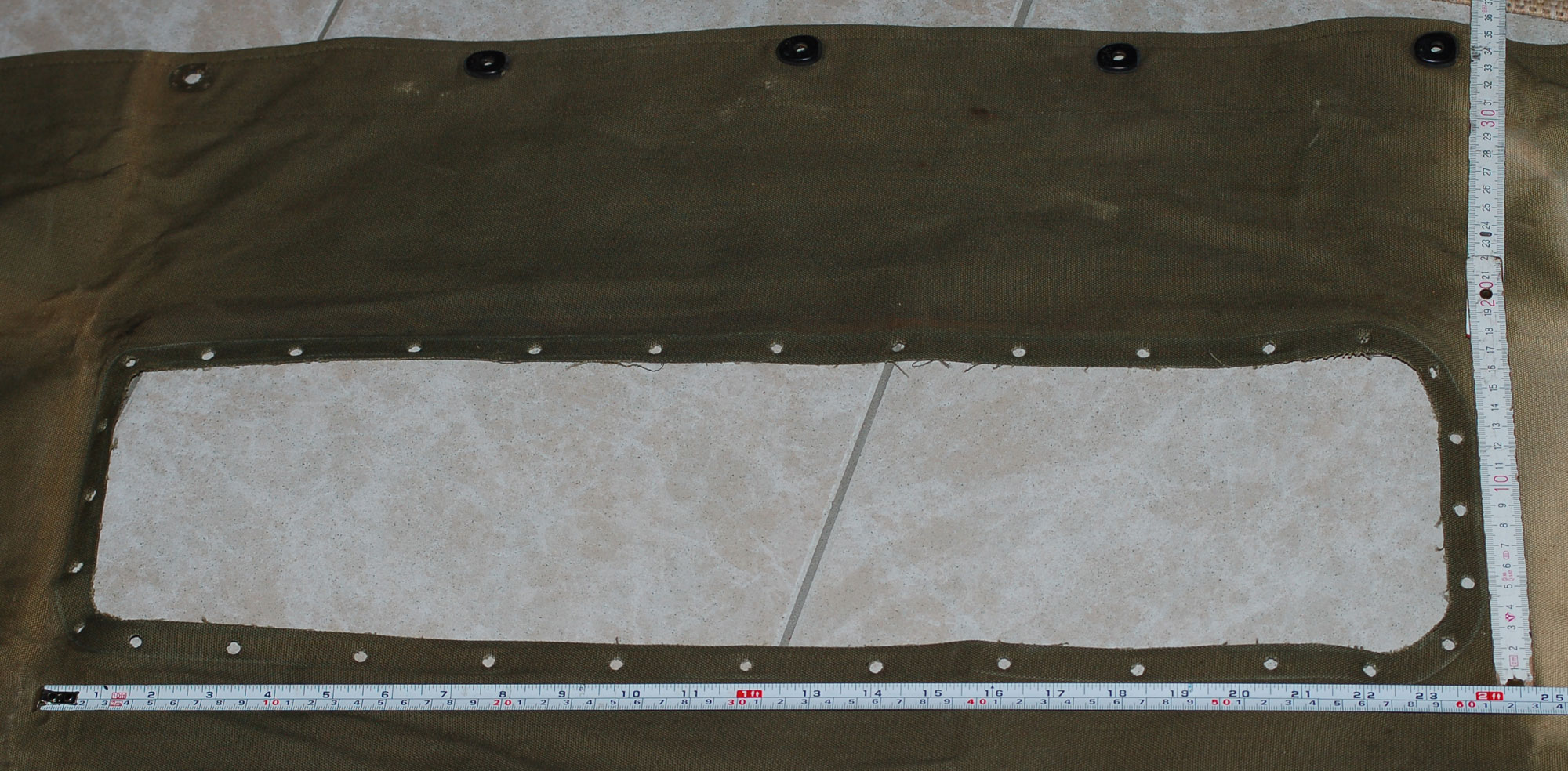

| Link to a bigger picture with measurements, 430 kb:
rear window |
| |
| |
| |
